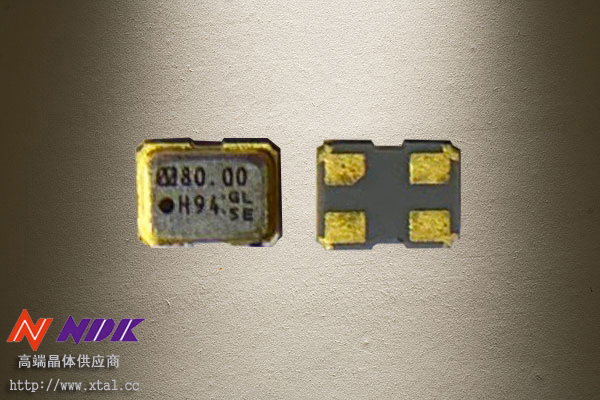

NZ1612SH

产品分类： NDK晶振

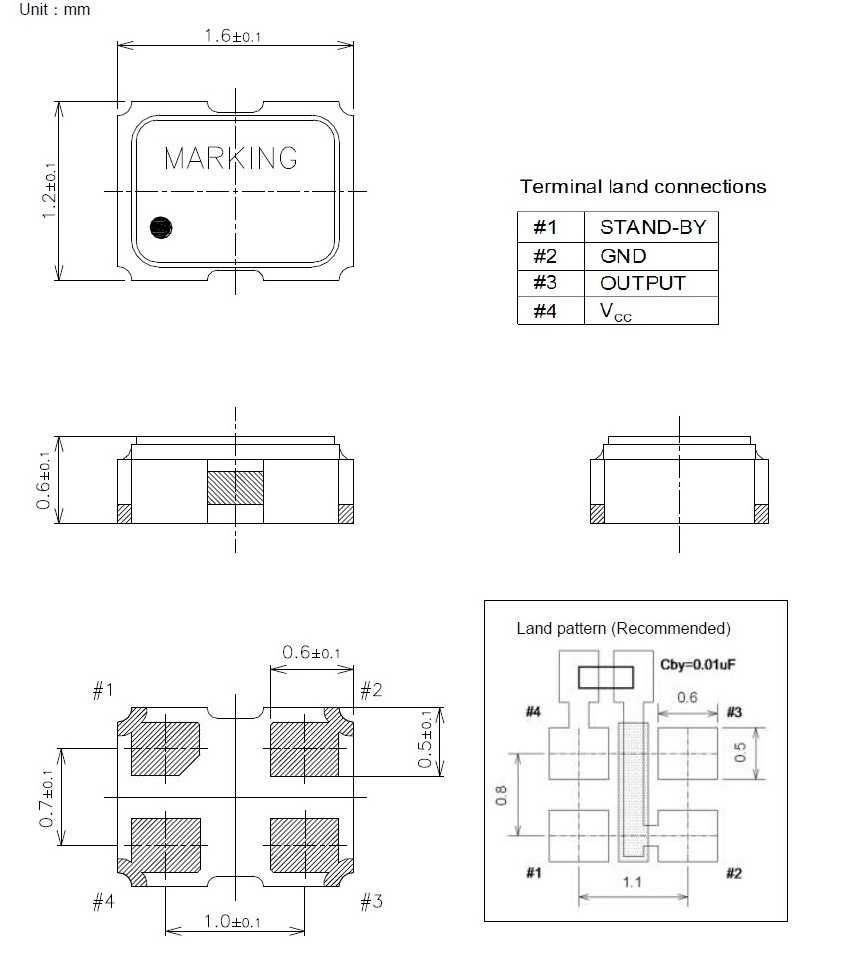

用途:无线耳机特征:可对应 -40 to +125°C的宽温范围尺寸1.6 × 1.2mm, 高度0.6mm, 重量0.01g, 超小型, 量轻额定频率 : 7.5 ≦ F ≦ 80 MHz低相位抖动 : Typ. 100fs (频率偏移：12kHz to 20MHz)@80MHz, 3.3V 缠带包装方式可对应自动搭载及IR回流焊接（无铅对应）为无铅产品符合AEC-Q100/Q200标准。

订购热线：0755-33533774

跟此产品相关的产品

: NZ1612SHB; 用途:无线耳机特征:可对应 -40 to +125°C的宽温范围尺寸1.6×1.2mm, 高度0.6mm, 重量0.01g, 超小型, 量轻额定频率 : 7.5 ≦ F ≦ 80 MHz 低相位抖动 : Typ. 100fs (频率偏移：12kHz to 20MHz)@80MHz, 3.3V缠带包装方式可对应自动搭载及IR回流焊接（无铅对应）为无铅产品符合AEC-Q100/Q200标准。

: NZ1612SH-12MHZ-NSC5101A

: NZ1612SHB-32.768KHz-NSC5154A

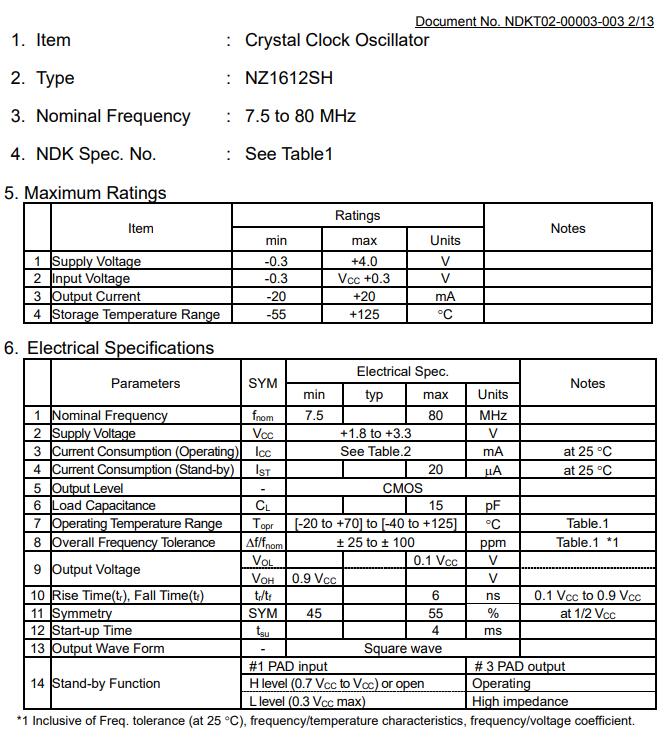

产品详情

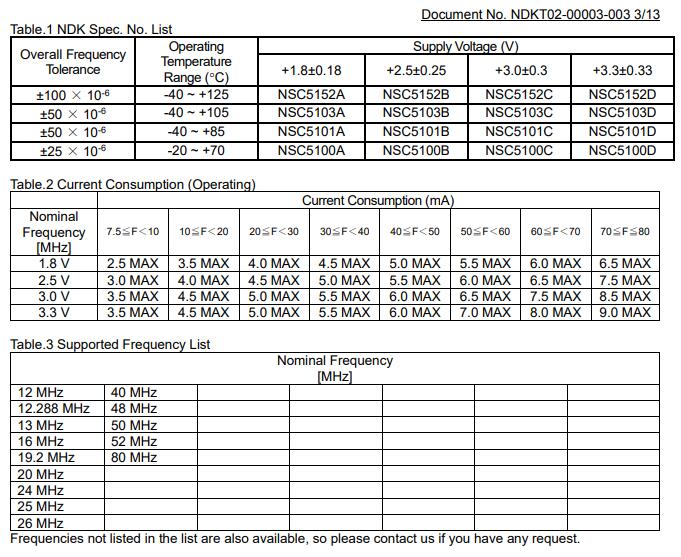

料号	型号	频率	电压	精度	工作温度
NSC5103A-25M	NZ1612SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5103A-25M	NZ1612SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5103A-80M	NZ1612SH	80MHz	1.8V	50PPM	-40°C ~ 105°C
NSC5103A-80M	NZ1612SH	80MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-12.288MHZ-NSC5100A	NZ1612SH	12.288MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-12.288MHZ-NSC5100B	NZ1612SH	12.288MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-12.288MHZ-NSC5100C	NZ1612SH	12.288MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-12.288MHZ-NSC5100D	NZ1612SH	12.288MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-12.288MHZ-NSC5101A	NZ1612SH	12.288MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-12.288MHZ-NSC5101B	NZ1612SH	12.288MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-12.288MHZ-NSC5101C	NZ1612SH	12.288MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-12.288MHZ-NSC5101D	NZ1612SH	12.288MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-12.288MHZ-NSC5103A	NZ1612SH	12.288MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-12.288MHZ-NSC5103B	NZ1612SH	12.288MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-12.288MHZ-NSC5103C	NZ1612SH	12.288MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-12.288MHZ-NSC5103D	NZ1612SH	12.288MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-12.288MHZ-NSC5152A	NZ1612SH	12.288MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-12.288MHZ-NSC5152B	NZ1612SH	12.288MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-12.288MHZ-NSC5152C	NZ1612SH	12.288MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-12.288MHZ-NSC5152D	NZ1612SH	12.288MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-12MHZ-NSC5100A	NZ1612SH	12MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-12MHZ-NSC5100B	NZ1612SH	12MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-12MHZ-NSC5100C	NZ1612SH	12MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-12MHZ-NSC5100D	NZ1612SH	12MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-12MHZ-NSC5101A	NZ1612SH	12MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-12MHZ-NSC5101B	NZ1612SH	12MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-12MHZ-NSC5101C	NZ1612SH	12MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-12MHZ-NSC5101D	NZ1612SH	12MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-12MHZ-NSC5103A	NZ1612SH	12MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-12MHZ-NSC5103B	NZ1612SH	12MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-12MHZ-NSC5103C	NZ1612SH	12MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-12MHZ-NSC5103D	NZ1612SH	12MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-12MHZ-NSC5152A	NZ1612SH	12MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-12MHZ-NSC5152B	NZ1612SH	12MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-12MHZ-NSC5152C	NZ1612SH	12MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-12MHZ-NSC5152D	NZ1612SH	12MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-13MHZ-NSC5100A	NZ1612SH	13MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-13MHZ-NSC5100B	NZ1612SH	13MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-13MHZ-NSC5100C	NZ1612SH	13MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-13MHZ-NSC5100D	NZ1612SH	13MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-13MHZ-NSC5101A	NZ1612SH	13MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-13MHZ-NSC5101B	NZ1612SH	13MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-13MHZ-NSC5101C	NZ1612SH	13MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-13MHZ-NSC5101D	NZ1612SH	13MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-13MHZ-NSC5103A	NZ1612SH	13MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-13MHZ-NSC5103B	NZ1612SH	13MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-13MHZ-NSC5103C	NZ1612SH	13MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-13MHZ-NSC5103D	NZ1612SH	13MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-13MHZ-NSC5152A	NZ1612SH	13MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-13MHZ-NSC5152B	NZ1612SH	13MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-13MHZ-NSC5152C	NZ1612SH	13MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-13MHZ-NSC5152D	NZ1612SH	13MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-16MHZ-NSC5100A	NZ1612SH	16MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-16MHZ-NSC5100B	NZ1612SH	16MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-16MHZ-NSC5100C	NZ1612SH	16MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-16MHZ-NSC5100D	NZ1612SH	16MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-16MHZ-NSC5101A	NZ1612SH	16MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-16MHZ-NSC5101B	NZ1612SH	16MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-16MHZ-NSC5101C	NZ1612SH	16MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-16MHZ-NSC5101D	NZ1612SH	16MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-16MHZ-NSC5103A	NZ1612SH	16MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-16MHZ-NSC5103B	NZ1612SH	16MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-16MHZ-NSC5103C	NZ1612SH	16MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-16MHZ-NSC5103D	NZ1612SH	16MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-16MHZ-NSC5152A	NZ1612SH	16MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-16MHZ-NSC5152B	NZ1612SH	16MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-16MHZ-NSC5152C	NZ1612SH	16MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-16MHZ-NSC5152D	NZ1612SH	16MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-19.2MHZ-NSC5100A	NZ1612SH	19.2MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-19.2MHZ-NSC5100B	NZ1612SH	19.2MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-19.2MHZ-NSC5100C	NZ1612SH	19.2MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-19.2MHZ-NSC5100D	NZ1612SH	19.2MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-19.2MHZ-NSC5101A	NZ1612SH	19.2MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-19.2MHZ-NSC5101B	NZ1612SH	19.2MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-19.2MHZ-NSC5101C	NZ1612SH	19.2MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-19.2MHZ-NSC5101D	NZ1612SH	19.2MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-19.2MHZ-NSC5103A	NZ1612SH	19.2MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-19.2MHZ-NSC5103B	NZ1612SH	19.2MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-19.2MHZ-NSC5103C	NZ1612SH	19.2MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-19.2MHZ-NSC5103D	NZ1612SH	19.2MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-19.2MHZ-NSC5152A	NZ1612SH	19.2MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-19.2MHZ-NSC5152B	NZ1612SH	19.2MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-19.2MHZ-NSC5152C	NZ1612SH	19.2MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-19.2MHZ-NSC5152D	NZ1612SH	19.2MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-20MHZ-NSC5100A	NZ1612SH	20MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-20MHZ-NSC5100B	NZ1612SH	20MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-20MHZ-NSC5100C	NZ1612SH	20MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-20MHZ-NSC5100D	NZ1612SH	20MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-20MHZ-NSC5101A	NZ1612SH	20MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-20MHZ-NSC5101B	NZ1612SH	20MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-20MHZ-NSC5101C	NZ1612SH	20MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-20MHZ-NSC5101D	NZ1612SH	20MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-20MHZ-NSC5103A	NZ1612SH	20MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-20MHZ-NSC5103B	NZ1612SH	20MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-20MHZ-NSC5103C	NZ1612SH	20MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-20MHZ-NSC5103D	NZ1612SH	20MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-20MHZ-NSC5152A	NZ1612SH	20MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-20MHZ-NSC5152B	NZ1612SH	20MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-20MHZ-NSC5152C	NZ1612SH	20MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-20MHZ-NSC5152D	NZ1612SH	20MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-24MHZ-NSC5100A	NZ1612SH	24MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-24MHZ-NSC5100B	NZ1612SH	24MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-24MHZ-NSC5100C	NZ1612SH	24MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-24MHZ-NSC5100D	NZ1612SH	24MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-24MHZ-NSC5101A	NZ1612SH	24MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-24MHZ-NSC5101B	NZ1612SH	24MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-24MHZ-NSC5101C	NZ1612SH	24MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-24MHZ-NSC5101D	NZ1612SH	24MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-24MHZ-NSC5103A	NZ1612SH	24MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-24MHZ-NSC5103B	NZ1612SH	24MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-24MHZ-NSC5103C	NZ1612SH	24MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-24MHZ-NSC5103D	NZ1612SH	24MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-24MHZ-NSC5152A	NZ1612SH	24MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-24MHZ-NSC5152B	NZ1612SH	24MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-24MHZ-NSC5152C	NZ1612SH	24MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-24MHZ-NSC5152D	NZ1612SH	24MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-25MHZ-NSC5100A	NZ1612SH	25MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-25MHZ-NSC5100B	NZ1612SH	25MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-25MHZ-NSC5100C	NZ1612SH	25MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-25MHZ-NSC5100D	NZ1612SH	25MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-25MHZ-NSC5101A	NZ1612SH	25MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-25MHZ-NSC5101B	NZ1612SH	25MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-25MHZ-NSC5101C	NZ1612SH	25MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-25MHZ-NSC5101D	NZ1612SH	25MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-25MHZ-NSC5103A	NZ1612SH	25MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-25MHZ-NSC5103B	NZ1612SH	25MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-25MHZ-NSC5103C	NZ1612SH	25MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-25MHZ-NSC5103D	NZ1612SH	25MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-25MHZ-NSC5152A	NZ1612SH	25MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-25MHZ-NSC5152B	NZ1612SH	25MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-25MHZ-NSC5152C	NZ1612SH	25MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-25MHZ-NSC5152D	NZ1612SH	25MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-26MHZ-NSC5100A	NZ1612SH	26MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-26MHZ-NSC5100B	NZ1612SH	26MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-26MHZ-NSC5100C	NZ1612SH	26MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-26MHZ-NSC5100D	NZ1612SH	26MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-26MHZ-NSC5101A	NZ1612SH	26MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-26MHZ-NSC5101B	NZ1612SH	26MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-26MHZ-NSC5101C	NZ1612SH	26MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-26MHZ-NSC5101D	NZ1612SH	26MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-26MHZ-NSC5103A	NZ1612SH	26MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-26MHZ-NSC5103B	NZ1612SH	26MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-26MHZ-NSC5103C	NZ1612SH	26MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-26MHZ-NSC5103D	NZ1612SH	26MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-26MHZ-NSC5152A	NZ1612SH	26MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-26MHZ-NSC5152B	NZ1612SH	26MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-26MHZ-NSC5152C	NZ1612SH	26MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-26MHZ-NSC5152D	NZ1612SH	26MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-40MHZ-NSC5100A	NZ1612SH	40MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-40MHZ-NSC5100B	NZ1612SH	40MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-40MHZ-NSC5100C	NZ1612SH	40MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-40MHZ-NSC5100D	NZ1612SH	40MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-40MHZ-NSC5101A	NZ1612SH	40MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-40MHZ-NSC5101B	NZ1612SH	40MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-40MHZ-NSC5101C	NZ1612SH	40MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-40MHZ-NSC5101D	NZ1612SH	40MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-40MHZ-NSC5103A	NZ1612SH	40MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-40MHZ-NSC5103B	NZ1612SH	40MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-40MHZ-NSC5103C	NZ1612SH	40MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-40MHZ-NSC5103D	NZ1612SH	40MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-40MHZ-NSC5152A	NZ1612SH	40MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-40MHZ-NSC5152B	NZ1612SH	40MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-40MHZ-NSC5152C	NZ1612SH	40MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-40MHZ-NSC5152D	NZ1612SH	40MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-48MHZ-NSC5100A	NZ1612SH	48MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-48MHZ-NSC5100B	NZ1612SH	48MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-48MHZ-NSC5100C	NZ1612SH	48MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-48MHZ-NSC5100D	NZ1612SH	48MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-48MHZ-NSC5101A	NZ1612SH	48MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-48MHZ-NSC5101B	NZ1612SH	48MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-48MHZ-NSC5101C	NZ1612SH	48MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-48MHZ-NSC5101D	NZ1612SH	48MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-48MHZ-NSC5103A	NZ1612SH	48MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-48MHZ-NSC5103B	NZ1612SH	48MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-48MHZ-NSC5103C	NZ1612SH	48MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-48MHZ-NSC5103D	NZ1612SH	48MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-48MHZ-NSC5152A	NZ1612SH	48MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-48MHZ-NSC5152B	NZ1612SH	48MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-48MHZ-NSC5152C	NZ1612SH	48MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-48MHZ-NSC5152D	NZ1612SH	48MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-50MHZ-NSC5100A	NZ1612SH	50MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-50MHZ-NSC5100B	NZ1612SH	50MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-50MHZ-NSC5100C	NZ1612SH	50MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-50MHZ-NSC5100D	NZ1612SH	50MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-50MHZ-NSC5101A	NZ1612SH	50MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-50MHZ-NSC5101B	NZ1612SH	50MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-50MHZ-NSC5101C	NZ1612SH	50MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-50MHZ-NSC5101D	NZ1612SH	50MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-50MHZ-NSC5103A	NZ1612SH	50MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-50MHZ-NSC5103B	NZ1612SH	50MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-50MHZ-NSC5103C	NZ1612SH	50MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-50MHZ-NSC5103D	NZ1612SH	50MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-50MHZ-NSC5152A	NZ1612SH	50MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-50MHZ-NSC5152B	NZ1612SH	50MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-50MHZ-NSC5152C	NZ1612SH	50MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-50MHZ-NSC5152D	NZ1612SH	50MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-52MHZ-NSC5100A	NZ1612SH	52MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-52MHZ-NSC5100B	NZ1612SH	52MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-52MHZ-NSC5100C	NZ1612SH	52MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-52MHZ-NSC5100D	NZ1612SH	52MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-52MHZ-NSC5101A	NZ1612SH	52MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-52MHZ-NSC5101B	NZ1612SH	52MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-52MHZ-NSC5101C	NZ1612SH	52MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-52MHZ-NSC5101D	NZ1612SH	52MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-52MHZ-NSC5103A	NZ1612SH	52MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-52MHZ-NSC5103B	NZ1612SH	52MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-52MHZ-NSC5103C	NZ1612SH	52MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-52MHZ-NSC5103D	NZ1612SH	52MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-52MHZ-NSC5152A	NZ1612SH	52MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-52MHZ-NSC5152B	NZ1612SH	52MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-52MHZ-NSC5152C	NZ1612SH	52MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-52MHZ-NSC5152D	NZ1612SH	52MHz	3.3V	100PPM	-40°C ~ 125°C
NZ1612SH-80MHZ-NSC5100A	NZ1612SH	80MHz	1.8V	25PPM	-20°C ~ 70°C
NZ1612SH-80MHZ-NSC5100B	NZ1612SH	80MHz	2.5V	25PPM	-20°C ~ 70°C
NZ1612SH-80MHZ-NSC5100C	NZ1612SH	80MHz	3V	25PPM	-20°C ~ 70°C
NZ1612SH-80MHZ-NSC5100D	NZ1612SH	80MHz	3.3V	25PPM	-20°C ~ 70°C
NZ1612SH-80MHZ-NSC5101A	NZ1612SH	80MHz	1.8V	50PPM	-40°C ~ 85°C
NZ1612SH-80MHZ-NSC5101B	NZ1612SH	80MHz	2.5V	50PPM	-40°C ~ 85°C
NZ1612SH-80MHZ-NSC5101C	NZ1612SH	80MHz	3V	50PPM	-40°C ~ 85°C
NZ1612SH-80MHZ-NSC5101D	NZ1612SH	80MHz	3.3V	50PPM	-40°C ~ 85°C
NZ1612SH-80MHZ-NSC5103A	NZ1612SH	80MHz	1.8V	50PPM	-40°C ~ 105°C
NZ1612SH-80MHZ-NSC5103B	NZ1612SH	80MHz	2.5V	50PPM	-40°C ~ 105°C
NZ1612SH-80MHZ-NSC5103C	NZ1612SH	80MHz	3V	50PPM	-40°C ~ 105°C
NZ1612SH-80MHZ-NSC5103D	NZ1612SH	80MHz	3.3V	50PPM	-40°C ~ 105°C
NZ1612SH-80MHZ-NSC5152A	NZ1612SH	80MHz	1.8V	100PPM	-40°C ~ 125°C
NZ1612SH-80MHZ-NSC5152B	NZ1612SH	80MHz	2.5V	100PPM	-40°C ~ 125°C
NZ1612SH-80MHZ-NSC5152C	NZ1612SH	80MHz	3V	100PPM	-40°C ~ 125°C
NZ1612SH-80MHZ-NSC5152D	NZ1612SH	80MHz	3.3V	100PPM	-40°C ~ 125°C

02
2025-01
31
2024-12
31
2024-12
31
2024-12
30
2024-12
26
2024-12
作为一款性能卓越,稳定性高的产品特别是在物联网,智能家居,可穿戴设备等领域,这为艾博康ABRACON晶振制造商提供了巨大的市场机遇,ABM11W-32.0000MHZ-8-D1X-T3晶振作为Abracon晶振公司的一款明星产品,凭借其出色的性能和稳定性,在市场中赢得了广泛的认可。
26
2024-12

20
2024-12
20
2024-12
18
2024-12
18
2024-12
13
2024-12
12
2024-12
06
2024-12

的频率范围广泛,从8MHz到80MHz不等,尺寸小巧,便于集成到各种电子设备中。
27
2024-11
26
2024-11
07
2024-11
将深入探讨32.768KHz晶振常用进口品牌有那些。
04
2024-11
将详细介绍XRCGB26M000F1H08R0晶振的应用领域。
30
2024-10
29
2024-10
将深入探讨Q22FA1280009218爱普生晶振在各种应用中的重要作用,EPSON爱普生晶振是全球知名的晶振制造商,拥有丰富的生产经验和先进的技术,其中Q22FA1280009218进口晶振频率32MHz,负载电容10PF,精度10PPM,工作温度-40°C~85°C,此产品具有高精度,高稳定性和低功耗等特点,另外此款晶振还采用了先进的封装技术使得产品具有更小的体积和更高的可靠性。
09
2024-10
推荐一些NDK进口贴片晶振热销型号及其特点。
11
2024-09
30
2024-07
30
2024-05
电子设备中不可或缺的地位
台湾幸运5在电子科技的海洋中,有一个微小的器件,虽不起眼,却扮演着至关重要的角色那就是32.768KHz晶振,作为石英晶体的一种,它以其卓越的稳定性和精确性,在现代电子设备中占据了不可或缺的地位,随着科技的不断发展,电子设备对时间精度的要求越来越高,32.768KHz贴片晶振以其卓越的稳定性和精确性,满足了这一需求,成为现代电子设备中不可或缺的组成部分,例如常用的爱普生晶振,FC-135,FC-12M,FC1610AN,在电子设备领域都发挥着重要作用,无论是在智能手表,智能手机等个人消费电子产品中,还是在工业自动化,医疗设备等领域都随处可见。
15
2024-05
14
2024-05
数字设备的主动力
晶振是一种频率元器件,其主要作用是进行频率稳定和时钟信号产生,它由压电石英晶振和配套的电路主板组成,可实现高精度频率稳定和快速电信号处理,KYOCERA京瓷晶振旗下产品广泛应用于计算机,通讯设备,汽车电子,家电,时钟定时模块,可穿戴智能电子手表,可视电话等各种应用,作为全球领先的日系知名品牌晶振制造商之一,京瓷晶振为高科技产业提供了精准的时钟信号,帮助各种电子设备实现高效,稳定的运行。
17
2024-04
21
2024-03
引领未来智能设备的新纪元

简介

NDK晶振台湾幸运5产品性能特点包括高精度,低抖动,低噪声,以及卓越的温度稳定性和环境适应性,其产品能在极端温度和震动条件下保持稳定工作,符合环保标准,支持无铅焊料回流成形,并广泛应用于多个市场领域,此外NDK还具备小型化低功耗等特点,为电子产品提供高效的频率控制解决方案,请浏览我们的网站http://ysgcompany.com

^{台湾幸运5}

联系人：黄河 _15602443498

座机：_{0755-33533774}

邮箱：_{jiakedz@163.com}

QQ：_3080074590

_地址：_{深圳市宝安区13区宝民一路白金大厦13F}

_网址：_{https://ysgcompany.com}

NZ1612SH NDK晶振 NZ1612SH-24MHZ-NSC5101D NZ1612SH-25MHZ-NSC5101D NZ1612SH-40MHZ-NSC5101D NZ1612SH-48MHZ-NSC5101D NZ1612SH-50MHZ-NSC5101D

* 表示必填采购：NZ1612SH

* 联系人：	请填写您的真实姓名
公司名称：	请填写您的公司名称
联系电话：
* 手机号码：	请填写您的联系电话
电子邮件：
联系地址：
* 采购意向描述：
	请填写采购的产品数量和产品描述，方便我们进行统一备货。
验证码：

跟此产品相关的产品

: NZ1612SHB; 用途:无线耳机特征:可对应 -40 to +125°C的宽温范围尺寸1.6×1.2mm, 高度0.6mm, 重量0.01g, 超小型, 量轻额定频率 : 7.5 ≦ F ≦ 80 MHz 低相位抖动 : Typ. 100fs (频率偏移：12kHz to 20MHz)@80MHz, 3.3V缠带包装方式可对应自动搭载及IR回流焊接（无铅对应）为无铅产品符合AEC-Q100/Q200标准。

: NZ1612SH-12MHZ-NSC5101A

: NZ1612SHB-32.768KHz-NSC5154A

共有-条评论【我要评论】

查看全部评论

我要评论:
内容：	（内容最多500个汉字，1000个字符）
验证码：	看不清？！

联系加科电子Contact

咨询热线：0755-33533774

传真：0755-33533774

QQ：3080074590

邮箱：jiakedz@163.com

地址：台湾幸运5深圳市宝安区宝民一路123号3号楼13F

台湾幸运5

加科电子全球高端晶体品牌供应商小型化高”晶“准

NZ1612SH

引领未来智能设备的新纪元

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

台湾幸运5

加科电子 全球高端晶体品牌供应商小型化 高”晶“准

NZ1612SH

引领未来智能设备的新纪元

共有-条评论【我要评论】

晶振分类

进口晶振

台系晶振

晶振用途

晶振规格书

联系加科电子Contact

加科电子全球高端晶体品牌供应商小型化高”晶“准
